Fuse & Relay for 2017 Acura TLX
No.
Part # / Description / Price
Price
2
MSRP $10.65
$8.31
3
MSRP $21.25
$16.58
4
MSRP $20.85
$16.26
4
MSRP $18.10
$14.12
5
Mini Fuse
Acura
Acura Notes: PARTS: Part included with upper cover.
Description: Engine compartment, blade, 7.5 amp. Engine compartment, block, 7.5amp. Passenger compartment, 7.5amp. Cabin compartment, 7.5a. 1.5L turbo, engine compartment, 7.5a. Instrument panel, 7.5a. 2.0L turbo, engine compartment, 7.5a.
MSRP $3.79
$2.95
MSRP $3.79
$2.95
5
Fuse Acura
Acura Notes: PARTS: Part included with upper cover.
Description: Engine compartment, 5 amp. Engine compartment, 5a.
MSRP $0.63
$0.49
MSRP $0.63
$0.49
5
Mini Fuse Acura
Acura Notes: PARTS: Part included with upper cover.
Description: Engine compartment, blade, 30 amp. Passenger compartment, 30a. Cabin, 30 amp. 1.5L turbo, engine compartment, 30a. 2.0L turbo, engine compartment, 30a.
MSRP $2.53
$1.98
MSRP $2.53
$1.98
5
Mini Fuse Acura
Acura Notes: PARTS: Part included with upper cover.
Description: Passenger compartment, 20a. Cabin, 20 amp. Cabin compartment, 20a. Body, 20 amp. Engine compartment, 20 amp. 1.5L turbo, engine compartment, 20a. Instrument panel, 20a. 2.0L turbo, engine compartment, 20a.
MSRP $3.79
$2.95
MSRP $3.79
$2.95
5
Mini Fuse Acura
Acura Notes: PARTS: Part included with upper cover.
Description: Engine compartment, 15 amp. Passenger compartment, 15a. Cabin, 15 amp. 1.5L turbo, engine compartment, 15a. Instrument panel, 15a. 2.0L turbo, engine compartment, 15a.
MSRP $3.79
$2.95
MSRP $3.79
$2.95
5
Mini Fuse Acura
Acura Notes: PARTS: Part included with upper cover.
Description: Cabin compartment, 10a. Passenger compartment, 10amp. Engine compartment, blade, 10 amp. Cabin, 10 amp. 1.5L turbo, engine compartment, 10a. Instrument panel, 10a. 2.0L turbo, engine compartment, 10a.
MSRP $3.79
$2.95
MSRP $3.79
$2.95
6
ECM Relay Acura
Acura Notes: PARTS: Order by application.
Description: TSX. TLX. ILX, ILX Hybrid. Engine compartment, type 2. Engine compartment, engine control. Engine compartment, type 3, denso. Cabin compartment, type 2. Cabin compartment, ecm. Cabin, fuel injection. Cabin, ignition coil.
MSRP $92.20
$69.15
MSRP $92.20
$69.15
6
Relay Acura
Acura Notes: PARTS: Order by application.
Description: Engine compartment, mitsuba. Engine compartment, micro type, #2. Cabin compartment, type 4. Cabin, starter cut. Body, mitsuba.
MSRP $65.47
$51.06
MSRP $65.47
$51.06
6
Relay Acura
Acura Notes: PARTS: Order by application.
Description: Engine compartment, omron. Engine compartment, micro type, #1. MDX. TSX. Cabin compartment. 1.5L turbo, engine compartment. Cabin, sh-awd. Engine compartment, heater motor. RL. 2.0L turbo, engine compartment.
MSRP $6.32
$4.93
MSRP $6.32
$4.93

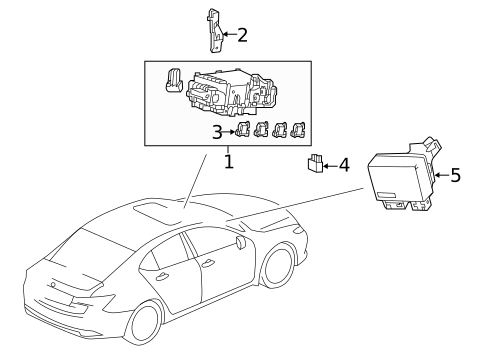

No.
Part # / Description / Price
Price
1
MSRP $1,141.60
$767.16
1
MSRP $1,081.28
$726.62
1
Fuse Box Acura
Acura Description: Cabin compartment, without technology pkg, without advance pkg, without technology pkg, without advance pkg.
MSRP $1,130.88
$759.95
MSRP $1,130.88
$759.95
2
MSRP $8.50
$6.63
4
Relay Acura
Acura Description: Cabin. Passenger compartment, seat heater. Engine compartment, compressor clutch. Engine compartment, wiper. RL. Instrument panel. ZDX.
MSRP $32.22
$25.13
MSRP $32.22
$25.13
4
Relay Acura
Acura Description: Engine compartment, omron. Engine compartment, micro type, #1. MDX. TSX. Cabin compartment. 1.5L turbo, engine compartment. Cabin, sh-awd. Engine compartment, heater motor. RL. 2.0L turbo, engine compartment.
MSRP $6.32
$4.93
MSRP $6.32
$4.93
5
Electronic Control Acura
Acura Notes: PARTS: Order by application.
Description: Cabin compartment, power steering, without lane keep assist, 3.5L. Eps control module. TLX. Fwd. Without tech package.
MSRP $673.77
$464.90
MSRP $673.77
$464.90
5
Electronic Control Acura
Acura Notes: PARTS: Order by application.
Description: Cabin compartment, power steering, with lane keep assist, 3.5L. Eps control module. TLX. Fwd. With tech package.
MSRP $686.35
$473.58
MSRP $686.35
$473.58
5
MSRP $685.73
$473.16
